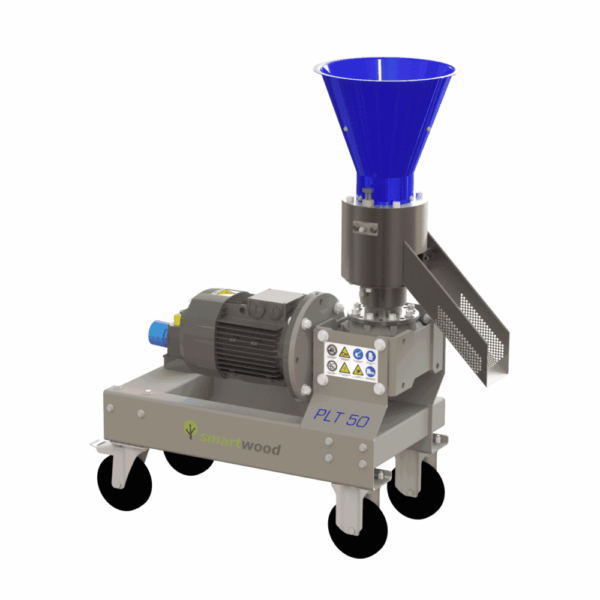

The PLT-50 pelletizer is a machine that is primarily aimed at those who want to have pellet production for their own needs, whether wood pellets, feed pellets, or straw pellets,
The PLT-50 Smartwood is a practical and efficient sustainable solution for those who do not have the option of having a three-phase outlet and at the same time want to produce pellets by exploiting local resources and reducing energy costs.
To make pelletizing machines work properly, however, certain “rules” must be followed, namely:
- The moisture content of the material between 10 and 14%.
- The grain size of the material, which must be less than 1 cm
- Use the die with the correct compression for the material you want to pelletize
By following these simple three points you will get quality pellets
Power supply: Single-phase electric
Installed power:3 kW
Estimated hourly output: BASED ON MATERIAL TO BE PELLETRIZED.
Pellet diameter: 6 mm
Drawing diameter: 119 mm
Roller diameter: No. 2 rollers diameter 78 mm(useful working surface approx 39 mm)
Dimensions (WxDxH): 87 x 39 x 106 cm
Weight: 110 kg
